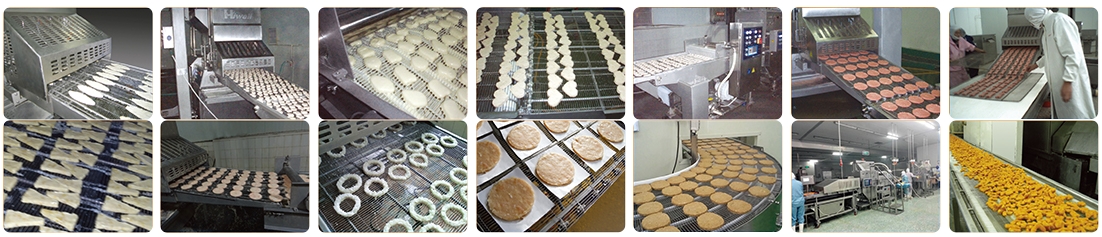

◎ Automatic Multi Forming machine can automatically perform various procedures such as meat filling ,forming and outputting ,and combine a fully automatic prepared food line when connecting with the batter, preduster ,fryer ,cooker ,instant freezer and packing machine.
◎ Widely handles in the forming procedure of meat, poultry, fish, shrimp and the potato, tuber crops.
◎ Electric apparatus parts: Using original Germany PLC processor with touch screen operation ,Chinese/English operating system and automatic failure alarm system .
◎ Safe device: Magnetic protection switch(safe cover).
◎ Hydraulic parts: Adopting the original parts to guarantee the stable running of the whole machine.
◎ Pneumatically system: Germany original system.
◎ can automatically perform various procedures such as meat filling ,forming and outputting ,and combine a fully automatic prepared food line when connecting with the batter, preduster ,fryer ,cooker ,instant freezer and packing machine.
◎ Widely handles in the forming procedure of meat, poultry, fish, shrimp and the potato, tuber crops.
◎ Electric apparatus parts: Using original Germany PLC processor with touch screen operation ,Chinese/English operating system and automatic failure alarm system .
◎ Safe device: Magnetic protection switch(safe cover).
◎ Hydraulic parts: Adopting the original parts to guarantee the stable running of the whole machine.
◎ Pneumatically system: Germany original system.
Model HKF-400
Belt width 400mm
Air/Water pressure 6Bar/2Bar
Power 15.12kw
Production capacity About 500~1000kg/h
Product thickness of product 6~40mm
Weight error ≤1%
Max. diameter 150mm
Filling pressure 3~15Mpa adjustable
Overall dimension 3170×1176×2430mm
