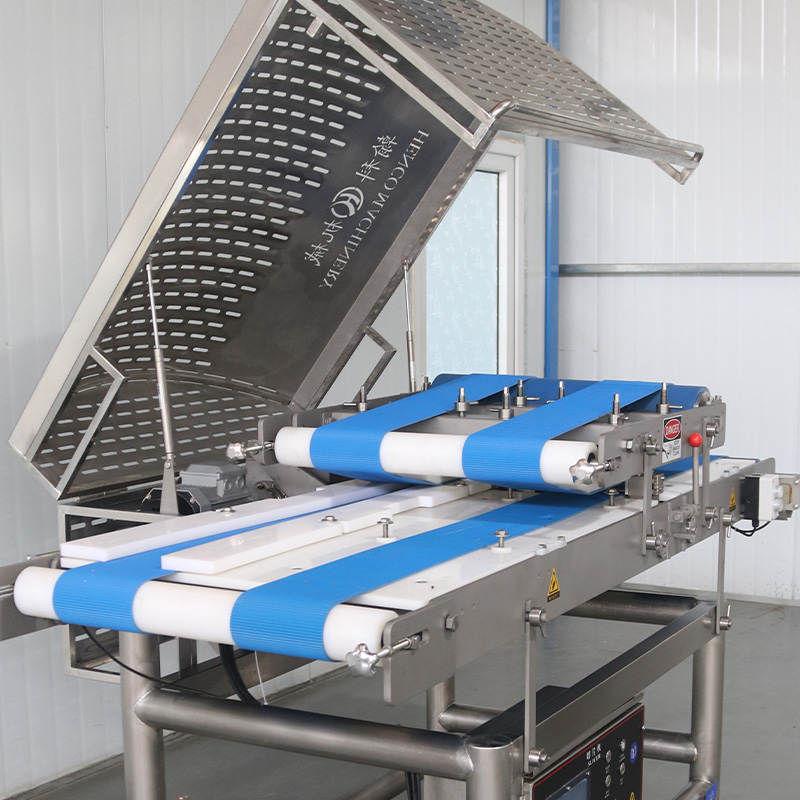

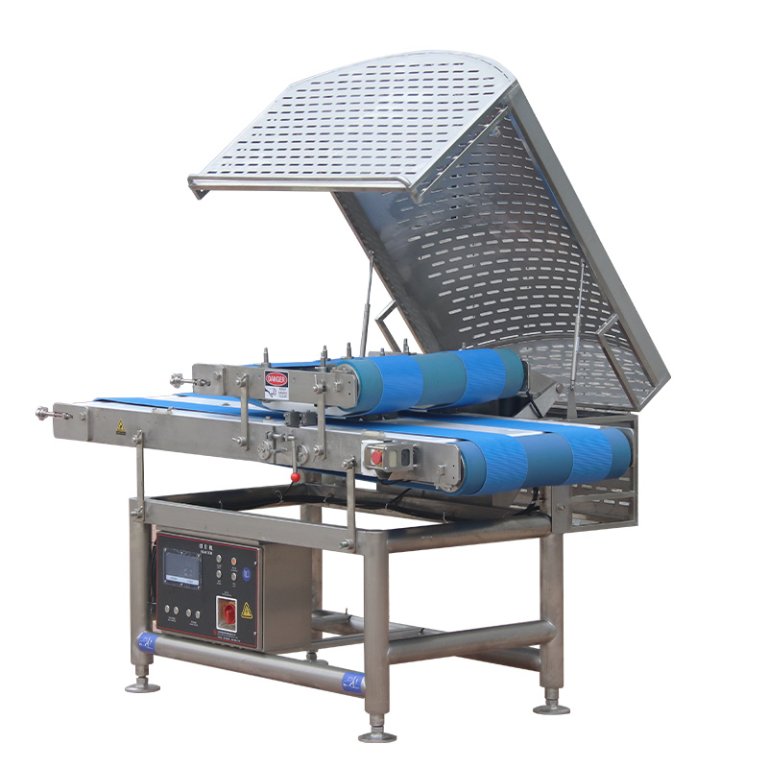

Automatic Fresh Meat Slicer HKQPJ500-VII

Automatic Fresh Horizontal Meat  Slicer  suitable for slicing chicken breast, boneless fresh beef, fish, pork and lamb. the horizontal slicer can slice maximum 7 layers, and can reach thinnest amount of 3mm per piece.The fresh meat horizontal cutting, accurate cutting thickness, smooth cutting surface; Double channel operation, convenient, easy to operate, cutting specifications can be adjusted; Multi-layer cutting can be realized, greatly improving the utilization rate of meat, and the weight and thickness of each layer can be controlled; The whole machine is made of 304 stainless steel and food grade plastic; Imported electrical parts are selected, the whole machine is waterproof, and can be washed with electricity.

Parameter

◎ High cutting precision, multiple slices in single cut with minimum thickness of 2.5 mm, maximum thickness of 50mm.

◎ Through blade cassette changing, switch between chicken breast slicing function and butterflying function as well as cutting thick- ness adjustment is easily and quickly completed.

◎ Floating upper belt, wide application for different precut thickness.

◎ Multilayer cutting of different thickness.

◎ Double feeding operation, high yield, 120 pieces/min.

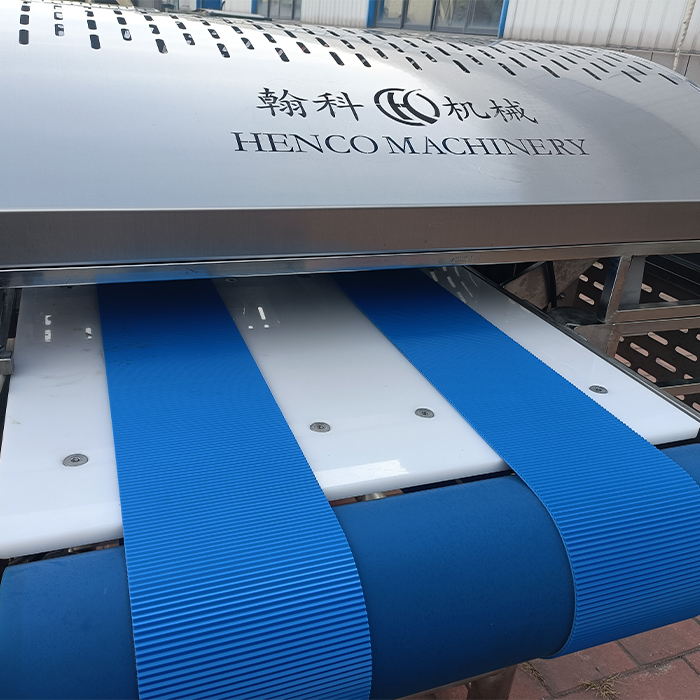

◎ Quality module type mesh belt, long life guaranteed.

◎ Made in stainless steel and engineering plastic, easy to clean and HACCP standard.

◎ Easy operation and low maintenance cost.

◎ Precise cutting thickness. Minimize labor cost.

◎ Can work with strip cutting machine to produce strip product.

1.Unique pressure control system, accurate and reasonable knife group combination, perfect conveyor belt and knife speed ratio, so that the chicken breast after cutting to ensure integrity.

2.The weight of the finished meat slices after cutting is within a controllable range, ensuring the original shape of the raw meat, cutting multiple layers can achieve equal division and equal weight cutting, the yield stability is extremely high, greatly saving labor.

3.The driving mode is the electric drum drives the belt to rotate, the whole machine has no chain and gear, the performance is more stable, the operation is more convenient, the maintenance is easier, the belt is quickly disassembled and installed, and the cleaning is no dead Angle.

4.Suitable for uniform cutting of chicken breast, beef, pork, fish and other fresh meat.

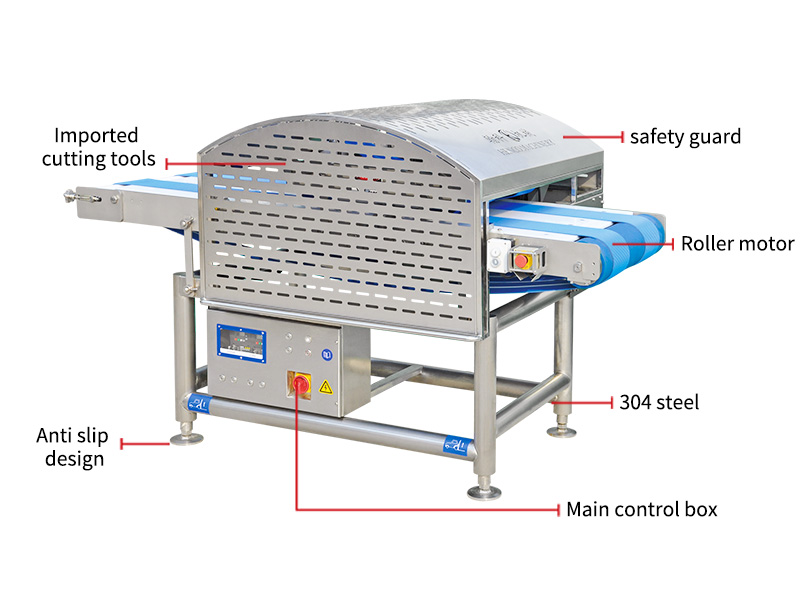

1.Roller motor drive imported from the United States, the whole machine without chain gear, the machine runs smoothly, no noise, no maintenance, extremely stable; This structure belt ring loading and unloading, more lightweight, fast loading and dismantling, more durable belt will not run off, cleaning no dead Angle.

2.Rivet blade, stainless steel toughness is very good, will not break, extremely sharp, cutting 50 to 80 tons of raw materials to replace once

3.Motor waterproof grade IP56, full speed operation 790 times /min, can be washed with water, warranty 1 year, bad replacement machine

4.The Siemens inverter can adjust the knife and conveyor belt speed, and has a self-protection system, when the current and voltage are abnormal, the machine automatically stops and displays the fault code to avoid burning electrical parts and motors.

5.The knife set is customizable and can cut meat in various shapes such as heart-shaped chicken fillet, and the butterfly knife can cut into the size and shape required by the customer.
