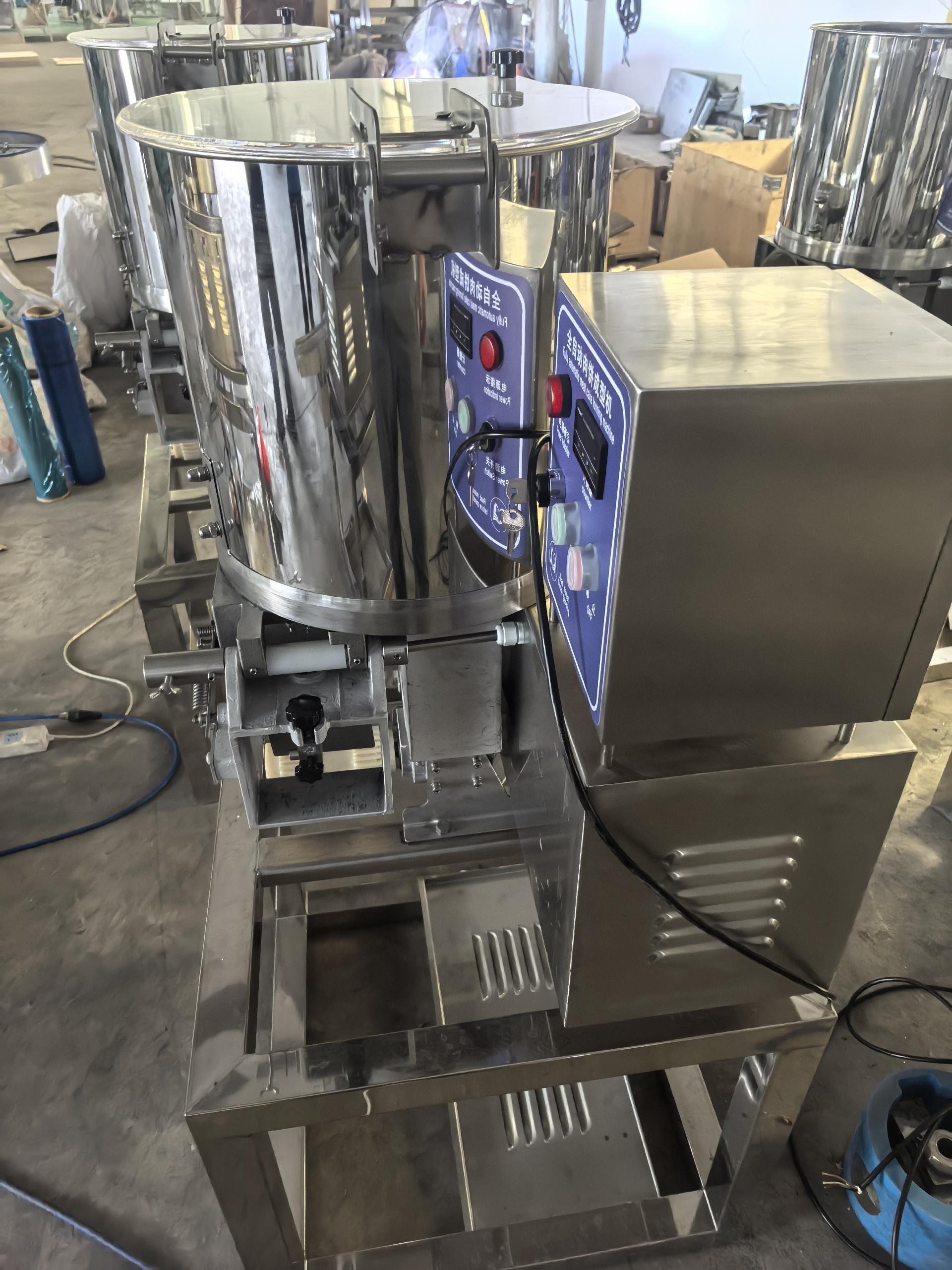

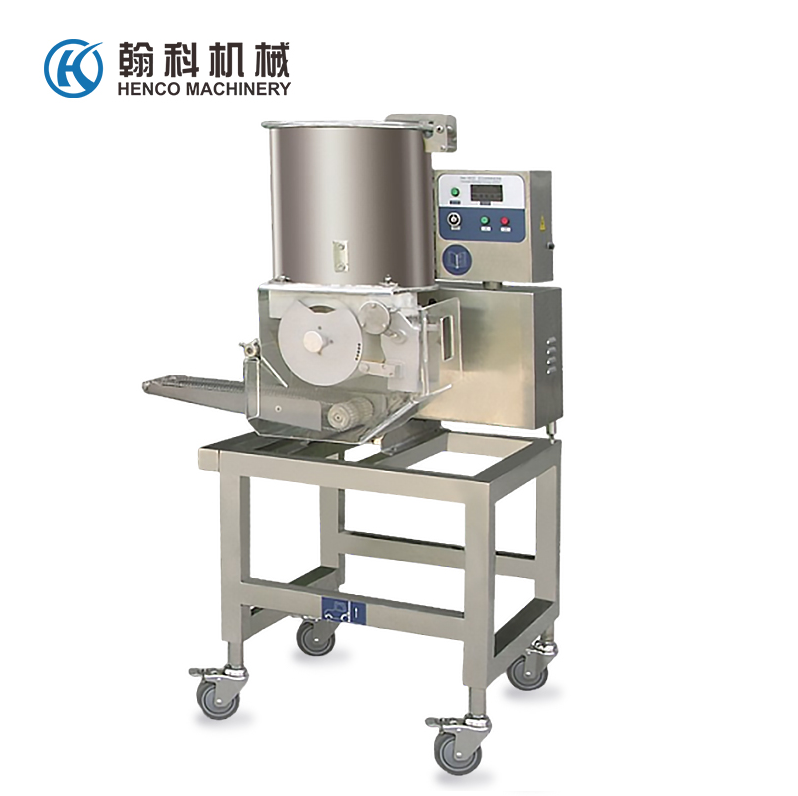

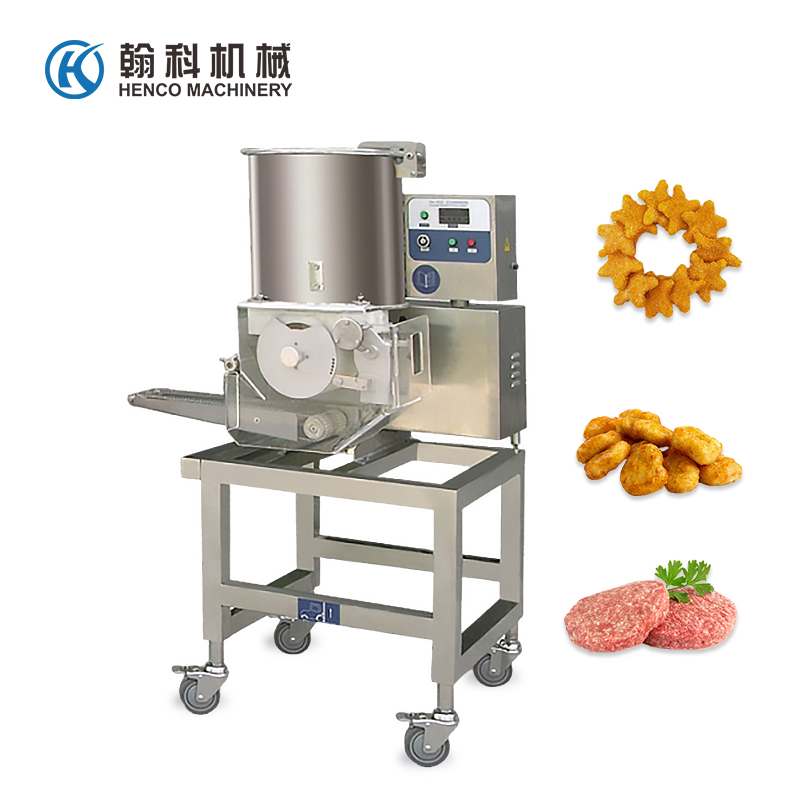

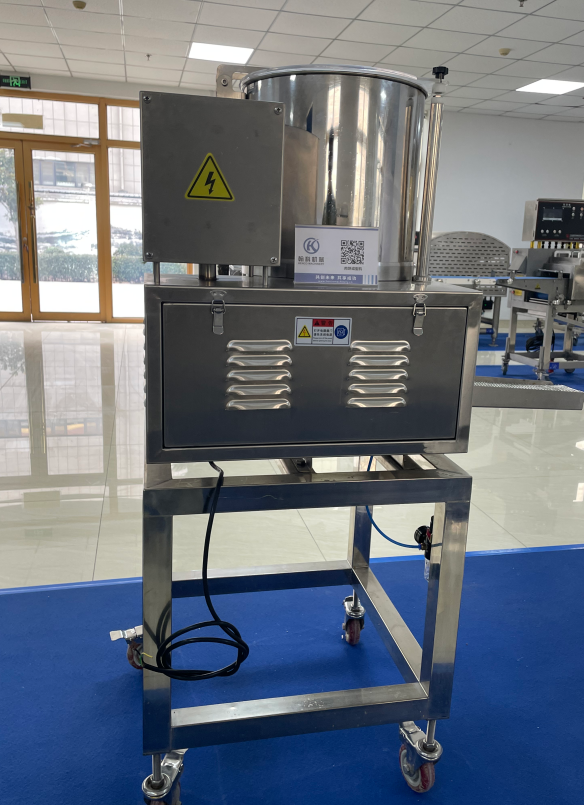

The fully automatic meat Patty forming machine can automatically complete the processes of filling, shaping and output of fillings. By changing different molds, products of various shapes (round, square, oval, triangular, heart-shaped and other special shapes) can be produced.
Electrical part: Using German PLC processor and touch screen operation. Chinese and English operating systems, automatic fault alarm system.
Protection device: magnetic protection switch (safety shield), electrical door opening interlock mechanism, and gas electric conversion system are used.
Hydraulic part: Assembled from world-renowned original products.
Pneumatic part: Using German pneumatic components (all)
Parameter
| MODEL | HKF-100 |
| Dimensions | 860*600*1400mm |
| Packaging box size | 1040*760*1600mm |
| Volume | 30L |
| Output | 50-100kg/h |
| Gross weight | 150kg |
| Power | 0.55kw |
Product Details

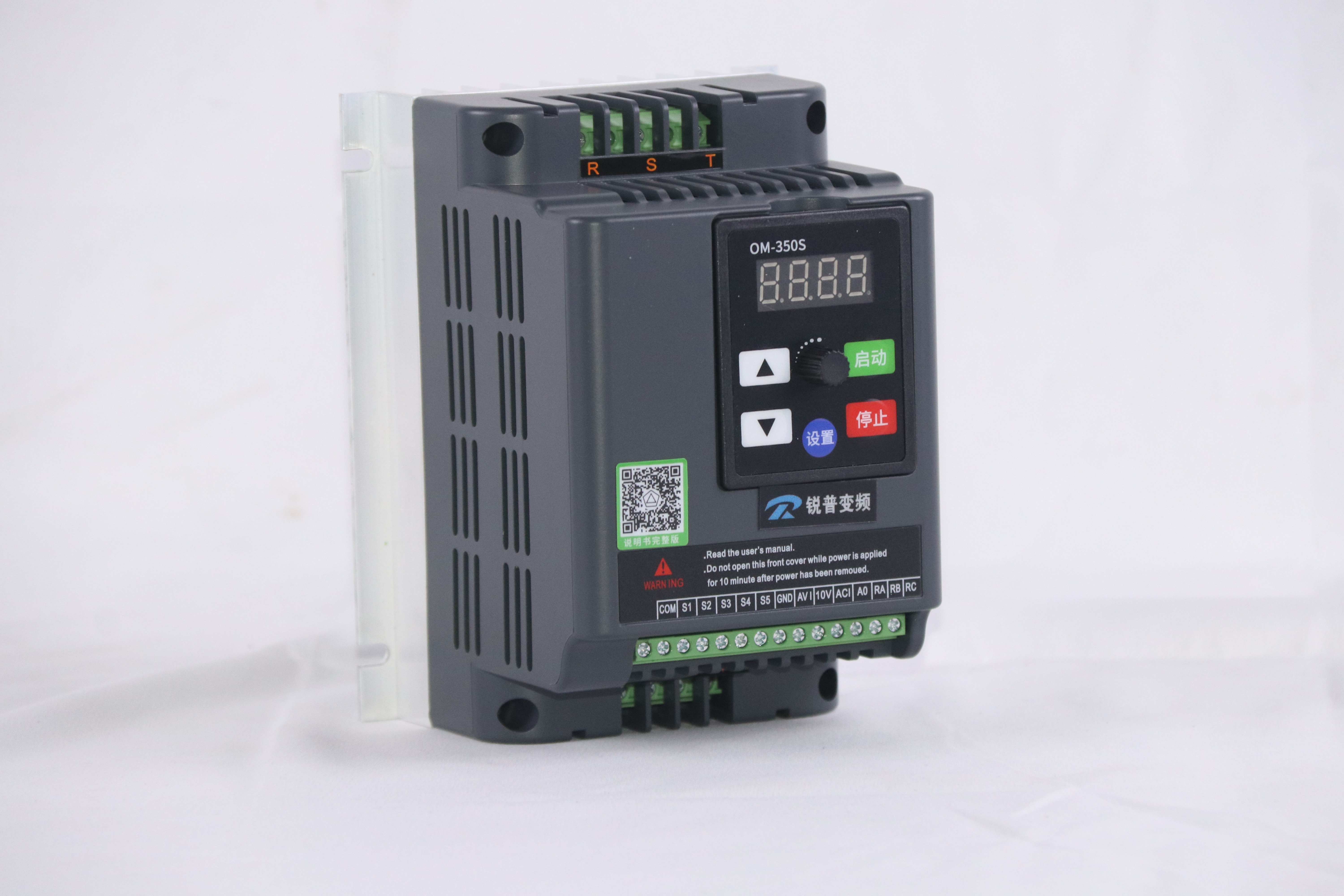

This equipment is equipped with the Ruipei frequency converter, which enables the motor to achieve stepless speed regulation. It precisely controls the feeding and rolling speed of the meat patty forming machine, ensuring uniform thickness of the patty.It has the function of converting single-phase to three-phase. It operates stably, has low noise and is energy-saving and environmentally friendly. The panel operation is simple and easy to understand, the parameter adjustment is convenient, beginners can easily master it, and it is equipped with multiple protections, suitable for food processing conditions.

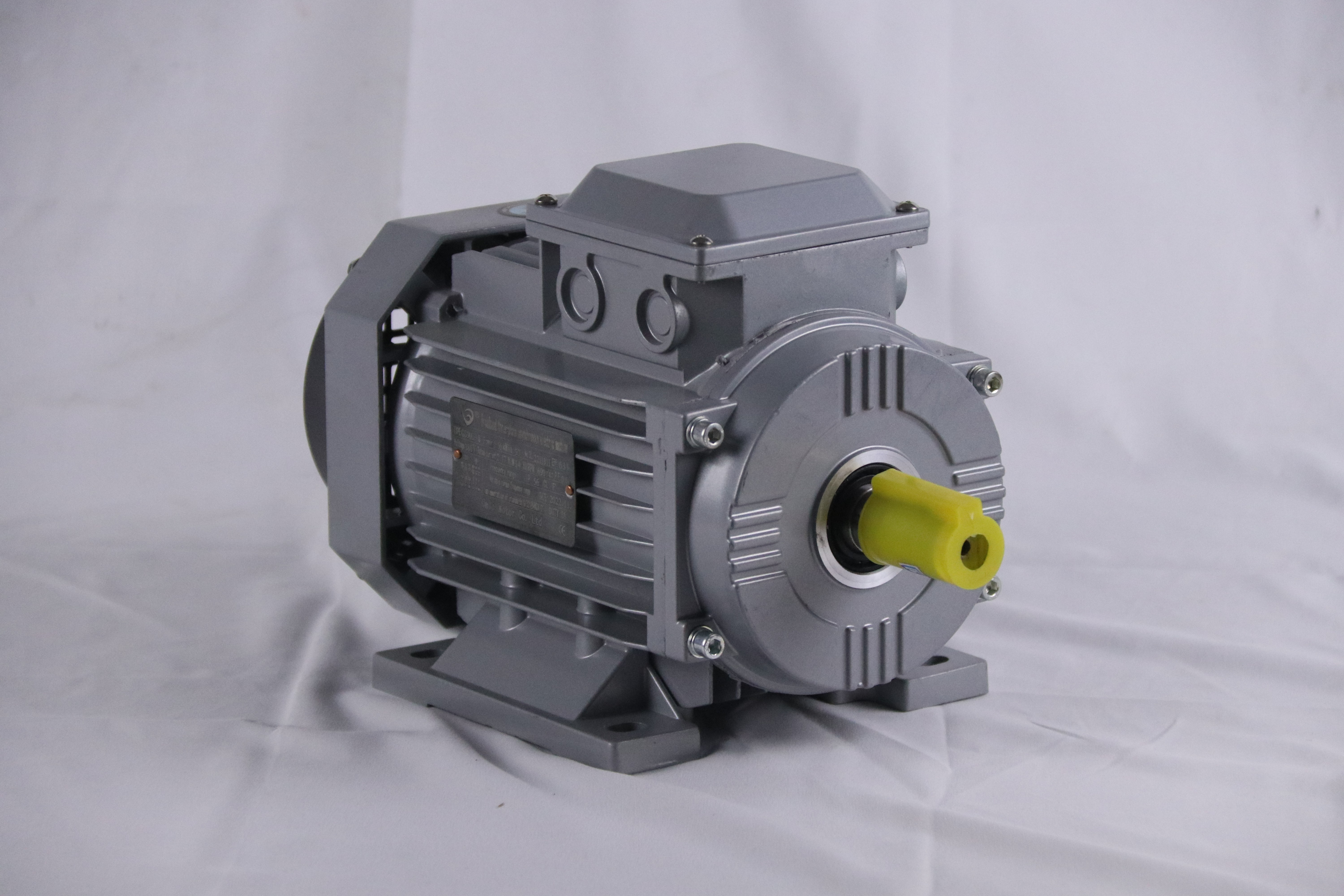

The motor has strong power and runs smoothly. It has a large torque and fast response, precisely adapting to the working conditions of forming, pressing, and conveying processes. It is low-noise, energy-saving, has a high protection level, can withstand frequent start-stop operations, is suitable for food processing environments, and ensures stable and continuous high-efficiency operation of the equipment.The waterproof rating is IP67, completely dust-proof, capable of withstanding high-pressure and high-temperature rinsing, and suitable for food processing water washing conditions. It features a stainless steel casing, sealed bearings and waterproof connectors, with shaft extension dynamic sealing + shell static sealing to prevent water infiltration, suitable for humid cleaning environments, ensuring safe operation.

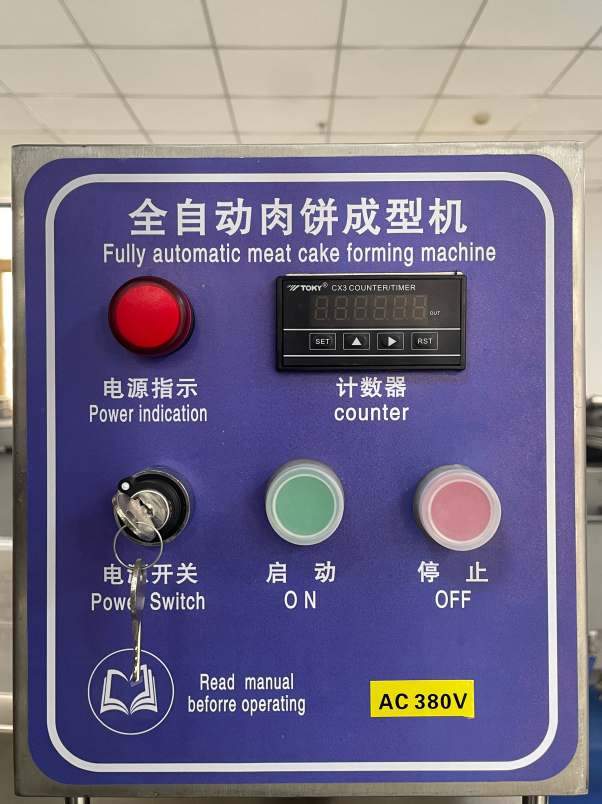

The operation panel is well-arranged and logically structured. It is equipped with power on/off, emergency stop, speed adjustment knobs and a digital display screen. It also incorporates an intelligent counting function, allowing all running parameters to be clearly visible. The panel is designed with food-grade waterproof features, featuring sensitive and durable buttons. The operation is simple and easy to understand, making it suitable for beginners to quickly master. It supports precise adjustment of the forming speed and thickness, and is compatible with various production needs. It is not affected by water washing and cleaning in food processing workshops, being both safe and convenient.
This machine is entirely made of 304 food-grade stainless steel. The body frame, forming molds, hopper and all areas in contact with the materials are made of this material, which complies with food processing hygiene standards. It is corrosion-resistant, rust-proof, and can withstand high-pressure water cleaning for maintenance. It is easy to clean and maintain. The material is sturdy and durable, resistant to impact and deformation. It is suitable for humid working conditions in meat processing and ensures long-term stable operation of the equipment and food production safety.

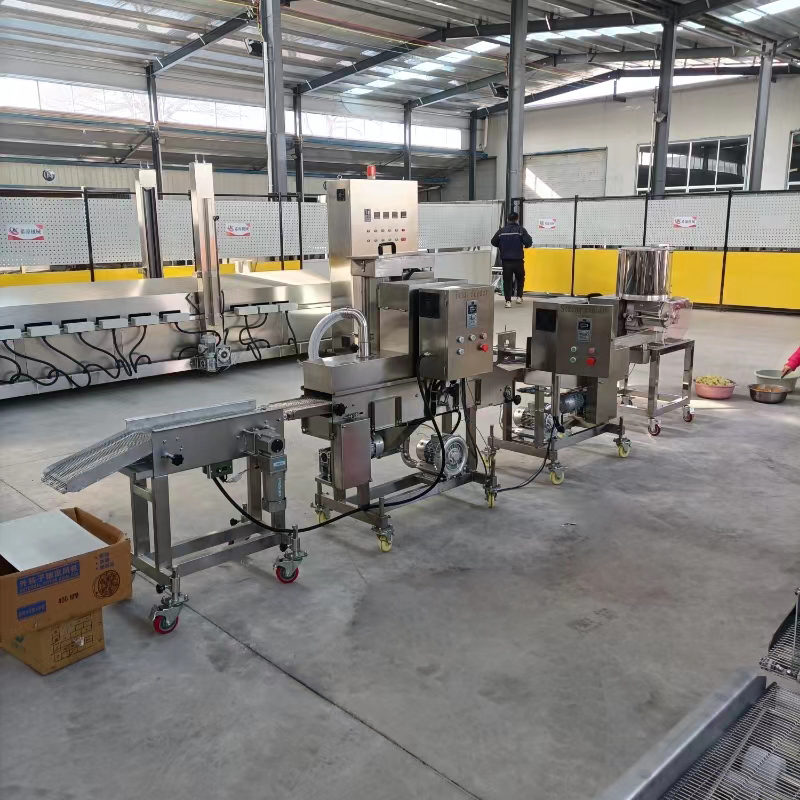

Production Line
